Pioneer 24,000 Btu Concealed Ducted Mini-Split — 19 Seer2, Energy Star, 230V Ceiling-Installed Heat Pump

Description

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
• Cooling capacity: 23,000 BTU/H with 19 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 25,000 BTU/H with 11.2 HSPF2 / 3.61 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $147.00
• Heating: $464.00

[[SERIES]]

What’s Included

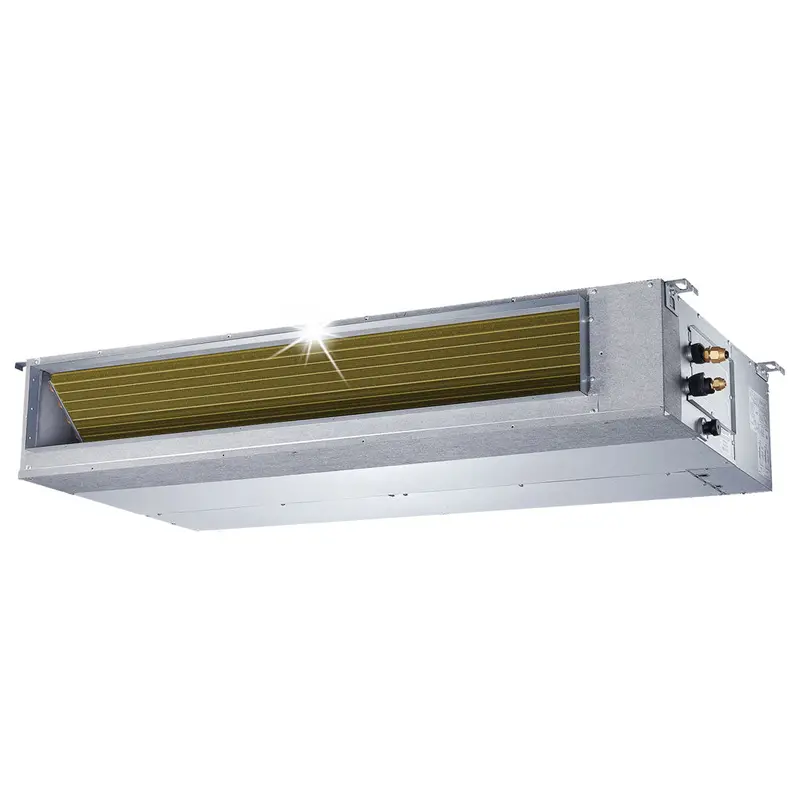

• Indoor Unit

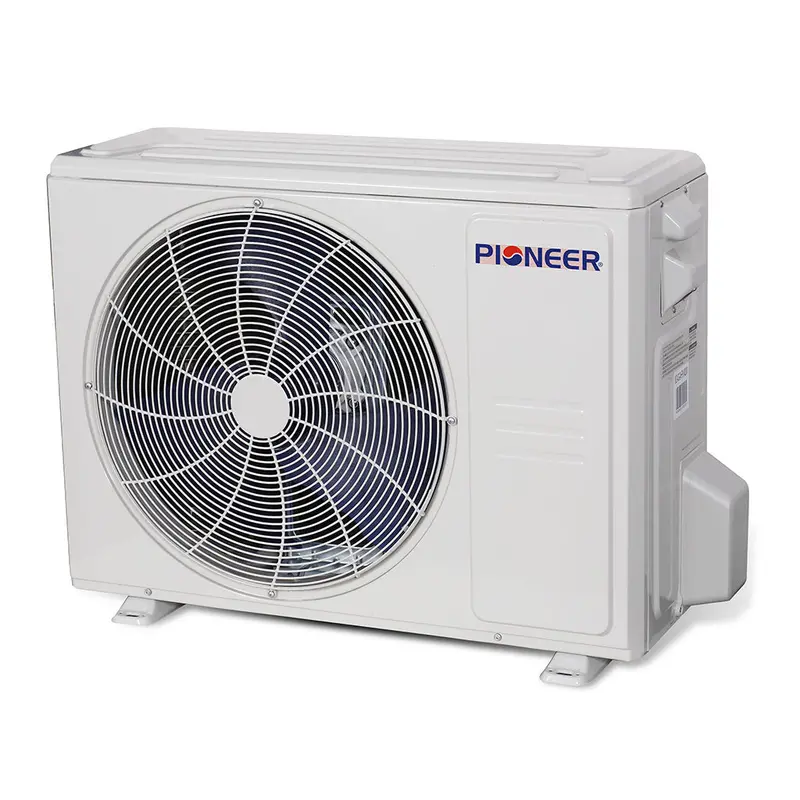

• Outdoor Unit

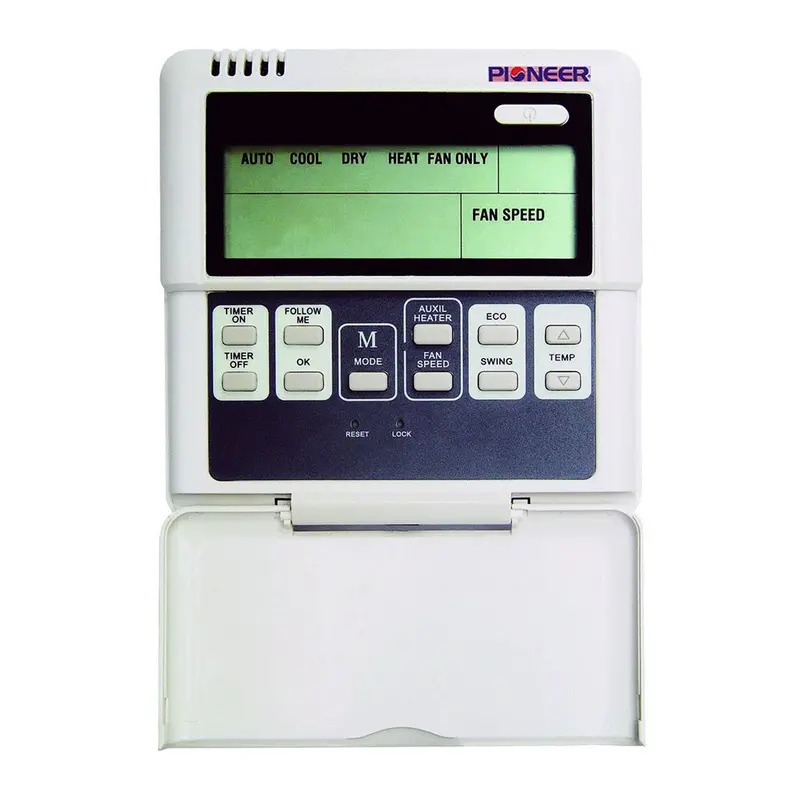

• Wire Remote Control

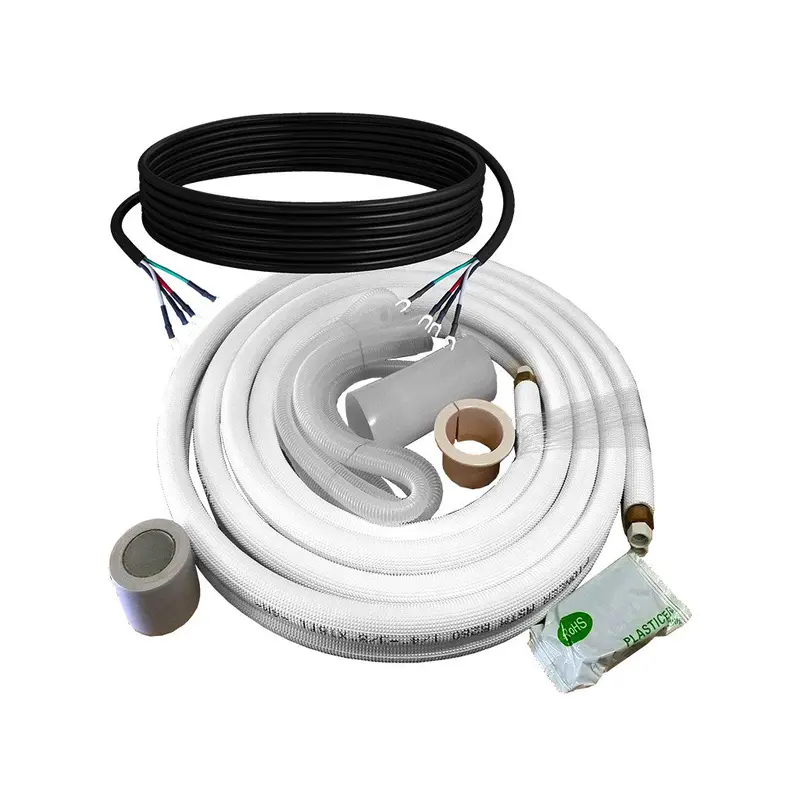

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 24,000 BTU/h
• Cooling Capacity Range: 6,100~28,200 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 25,000 BTU/h
• Heating Capacity Range: 11,700~33,000 BTU/h
• Heating HSPF2 (Region IV/V): 11.2 / 8.8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.61 / 2.3 W/W
• Refrigerant Type: R410a
• Suitable Area: 600~950 Sq.F

Indoor Unit Data

• Part Number: RB024GMFILDFHD
• Air Flow (Hi/Med/Lo): 775 / 693 / 435 CFM
• External Static Pressure: 0 ~ 0.64 Inch WC
• Sound Level (Hi/Med/Lo): 44.0 / 41.0 / 37.0 dB(A)
• Net Dimensions (WDH): 43″-3/8 x 30″-1/2 x 9″-3/4
• Carton Dimensions (WDH): 51″-3/8 x 31″-5/8 x 12″-3/8
• Net / Gross Weight: 90.4 / 105.8 Lbs

Outdoor Unit Data

• Part Number: YN024GMFI22RPE
• Sound Level: 61 dB(A)
• Breaker Needed: 25A (double-pole)
• Net Dimensions (WDH): 37″-1/4 x 16″-1/8 x 31″-7/8
• Carton Dimensions (WDH): 42″-7/8 x 19″-5/8 x 34″-7/8
• Net / Gross Weight: 124.8 / 134.9 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Technical Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• RYB024GMFILDAD Submittal Sheet
• AHRI Certificate
• Energy Guide
