Pioneer® 9K Btu 19.2 Seer2 Ceiling-Concealed Ducted Inverter++ Heat Pump – Complete Kit, 230V, Energy Star

Description

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
• Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $57.00
• Heating: $184.00

[[SERIES]]

What’s Included

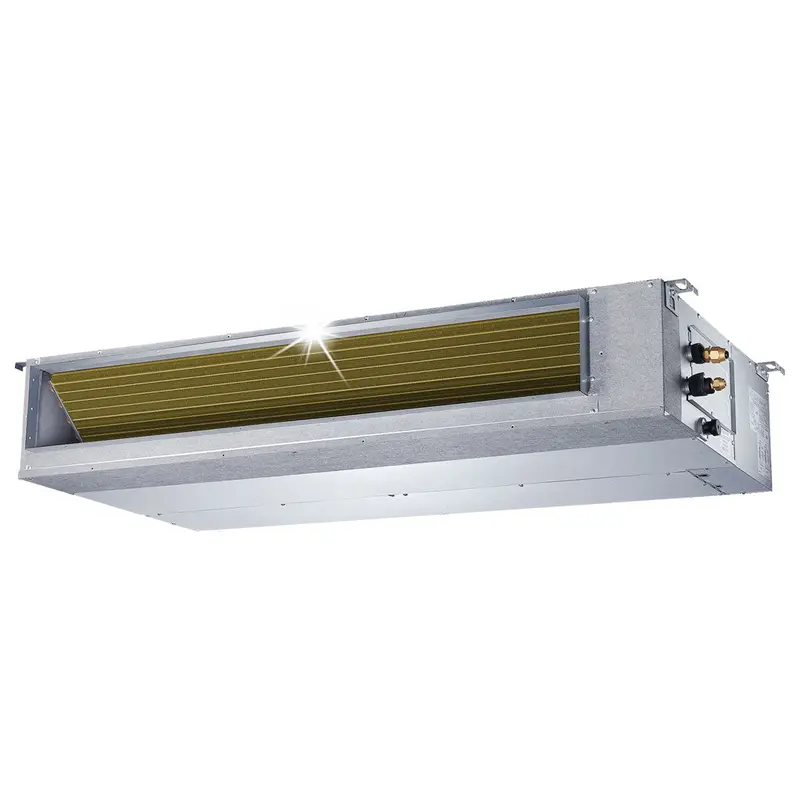

• Indoor Unit

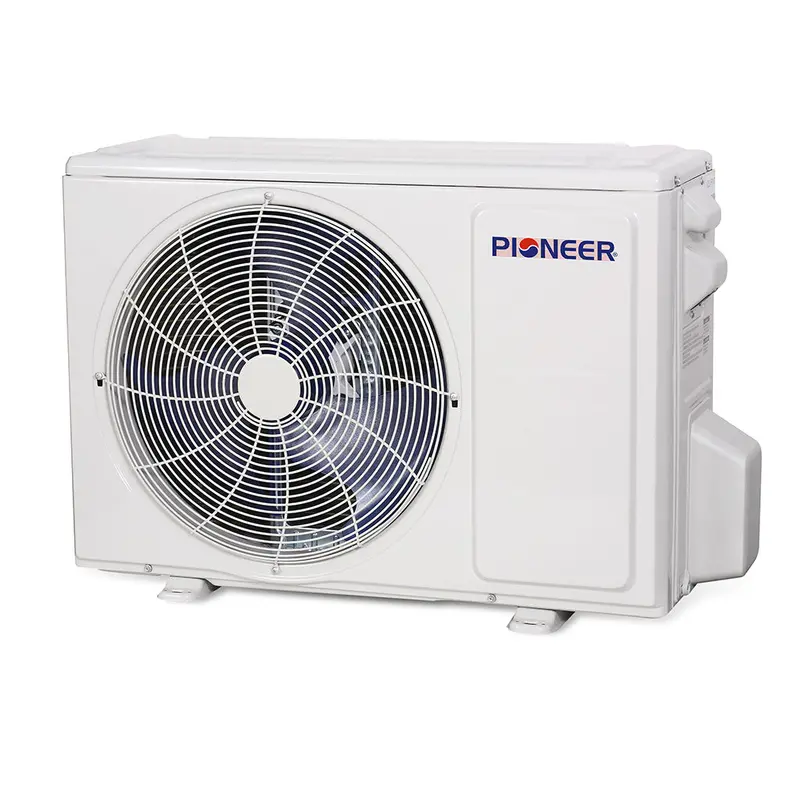

• Outdoor Unit

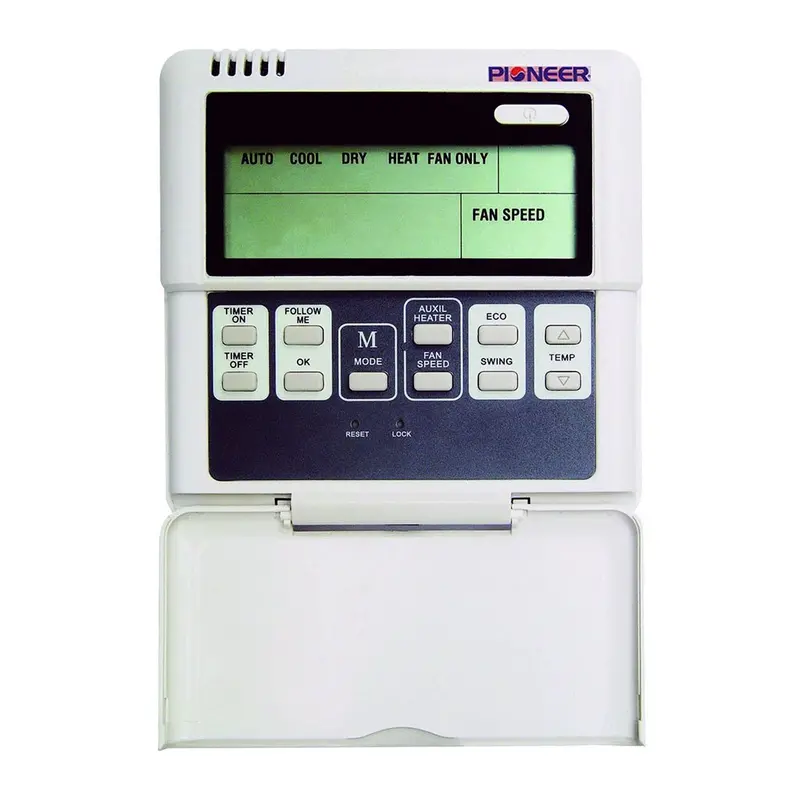

• Wire Remote Control

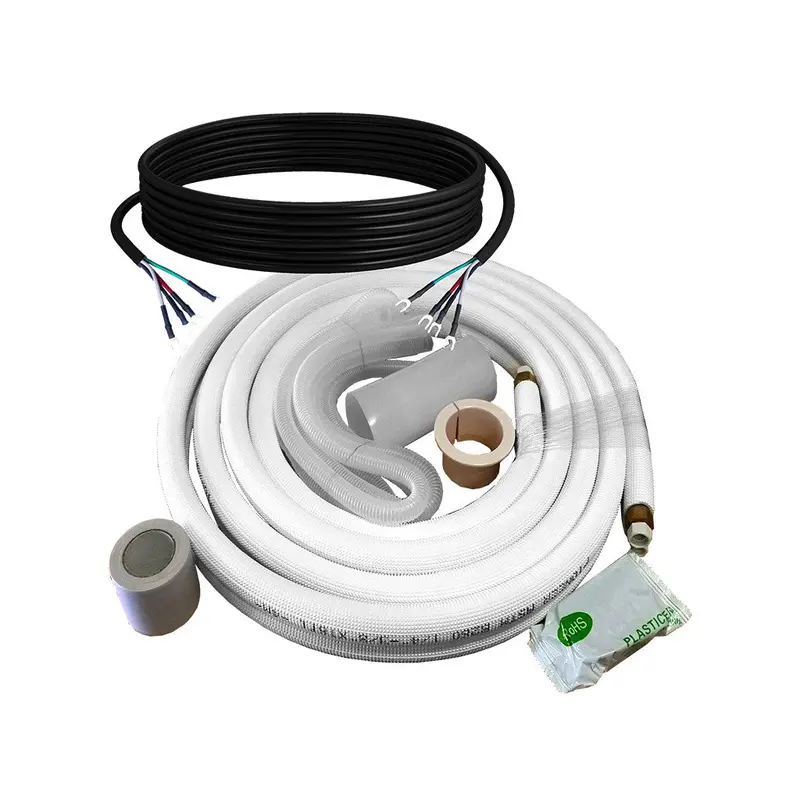

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Capacity Range: 2,220~11,600 BTU/h
• Cooling SEER2: 19.2 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 10,000 BTU/h
• Heating Capacity Range: 2,240~13,350 BTU/h
• Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
• Refrigerant Type: R410a
• Suitable Area: 100~350 Sq.F

Indoor Unit Data

• Part Number: RB009GMFILDFHD
• Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
• External Static Pressure: 0.0~0.16 Inch WC
• Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
• Net Dimensions (WDH): 27″-1/2 x 20″ x 7″-7/8
• Carton Dimensions (WDH): 33″-7/8 x 21″-1/4 x 11″-1/4
• Net / Gross Weight: 39.0 / 48.3 Lbs

Outdoor Unit Data

• Part Number: YN009GMFI22RPE
• Sound Level: 54.5 dB(A)
• Breaker Needed: 15A (double-pole)
• Net Dimensions (WDH): 30″-1/8 x 11″-7/8 x 21″-7/8
• Carton Dimensions (WDH): 34″-7/8 x 13″-1/4 x 24″
• Net / Gross Weight: 63.7 / 69.0 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Technical Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• RYB009GMFILDAD Submittal Sheet
• AHRI Certificate
• Energy Guide
